Understanding Optical Fiber Connectors

Optical fiber connectors are essential components in fiber optic communication systems, providing non-permanent connections between fiber-coupled devices. These connectors are similar to electrical connectors and are used in a variety of applications, including telecommunications and data transmission systems.

Components of Fiber Connectors

A typical fiber connector assembly includes an adapter and two connector plugs. Each plug houses a fiber, and the process of connecting these is more intricate than that of electrical connections. This requires careful preparation and alignment to ensure optimal performance.

Preparation and Assembly

The preparation of a fiber end involves using a fiber cleaver to ensure a clean cut. The orientation of the fiber interface must be precise, which may be checked with a microscope. The fiber is then inserted into the connector plug with great care to avoid damage. The use of epoxy or optical adhesive is common to secure the fiber within the plug.

In some cases, it is necessary to measure insertion loss and return loss to identify any faults. These procedures are often carried out in factories but can also be performed in the field with the appropriate equipment.

Characteristics of Optical Fiber Connectors

Various characteristics determine the suitability of fiber connectors for specific applications. These include insertion loss, return loss, and the ability to maintain a reliable connection over multiple mating cycles.

Insertion and Return Loss

Insertion loss refers to the loss of signal power resulting from the connection, typically measured in decibels (dB). A lower insertion loss indicates a more efficient connection. Return loss, or reflection loss, measures the attenuation of light reflected at the interface. A higher return loss is desirable as it indicates less light is being reflected back into the fiber.

Durability and Environmental Factors

Fiber connectors must withstand numerous mating cycles, especially in applications requiring frequent re-connections. The ease of connectorization and sensitivity to environmental factors such as cleanliness and vibrations are also important considerations.

Types of Optical Fiber Connectors

Several types of optical fiber connectors are commonly used, each with specific features and applications.

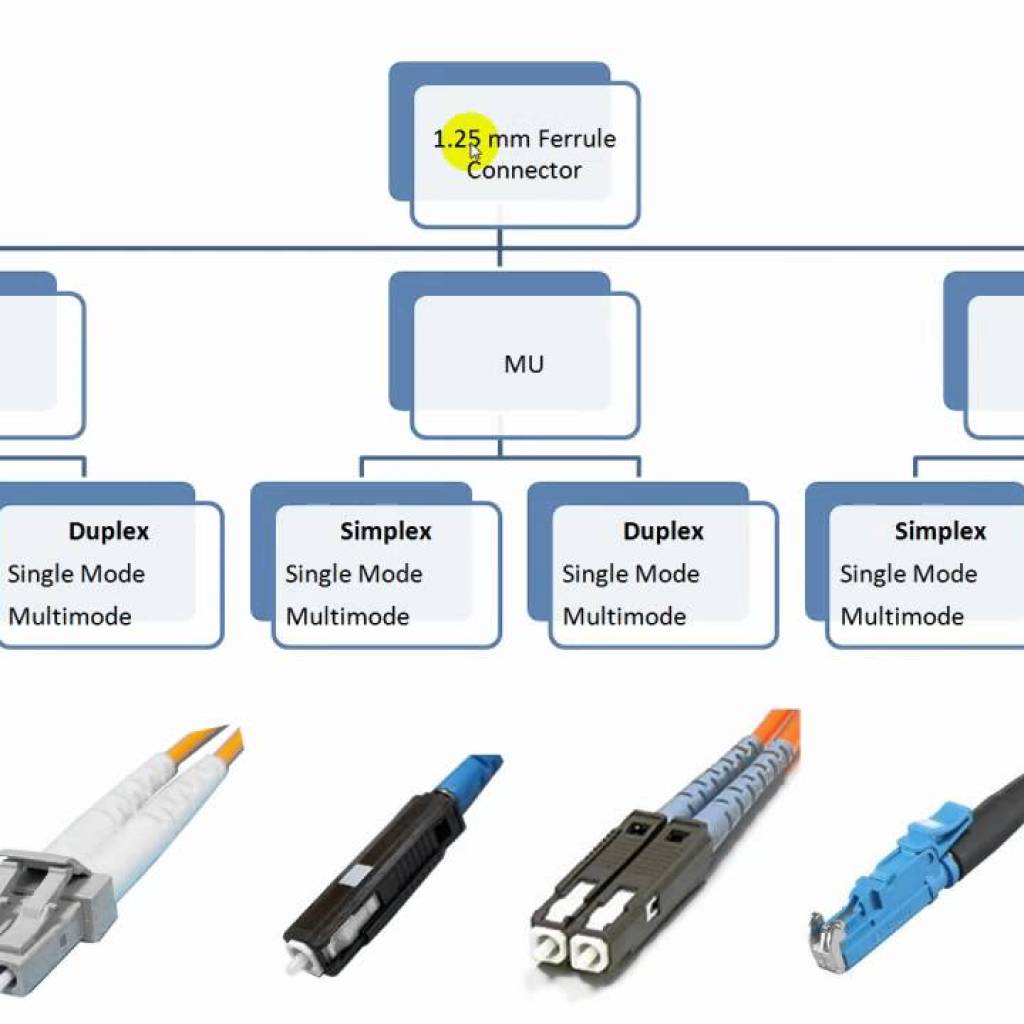

Single-fiber Connectors

• ST Connectors: Used primarily with multimode fibers, featuring a bayonet mount for secure connections.
• FC Connectors: Popular for single-mode fibers, offering good mechanical isolation and requiring careful handling.
• SC Connectors: General-purpose connectors for single-mode fibers, featuring a push/pull snap-in mechanism.
• LC Connectors: Small form factor connectors, often used with single-mode fibers and available in duplex versions.

Multi-fiber Connectors

• MPO/MTP Connectors: High-density connectors supporting multiple fibers, used in data centers and high-speed networks.
• MT-RJ Connectors: Duplex connectors for local area networks, integrating two fibers into a single ferrule.
• Q-RMC Connectors: Robust connectors for industrial use, offering protection against environmental factors.

Applications of Fiber Connectors

Fiber connectors are crucial in various applications, from telecommunications to laboratory settings. They are used in central offices of telephone companies, internet backbones, and fiber-to-the-home installations. In environments with high fiber counts, multi-fiber connectors are preferred.

In laboratory settings, fiber connectors are used to transport light to diagnostic instruments. However, for complex setups like mode-locked fiber lasers, mechanical or fusion splicing is often preferred to minimize return losses.

Conclusion

Optical fiber connectors play a vital role in modern communication systems, offering flexibility and reliability in connecting fiber optic cables. Understanding their characteristics and applications helps in selecting the right connectors for specific needs, ensuring efficient and effective data transmission.
