Understanding Propagation Constants in Waveguides
Propagation constants are fundamental parameters in the study of waveguides, such as optical fibers, where they play a crucial role in determining how light behaves as it travels through these structures. This article delves into the concept of propagation constants, their significance, and how they are calculated.

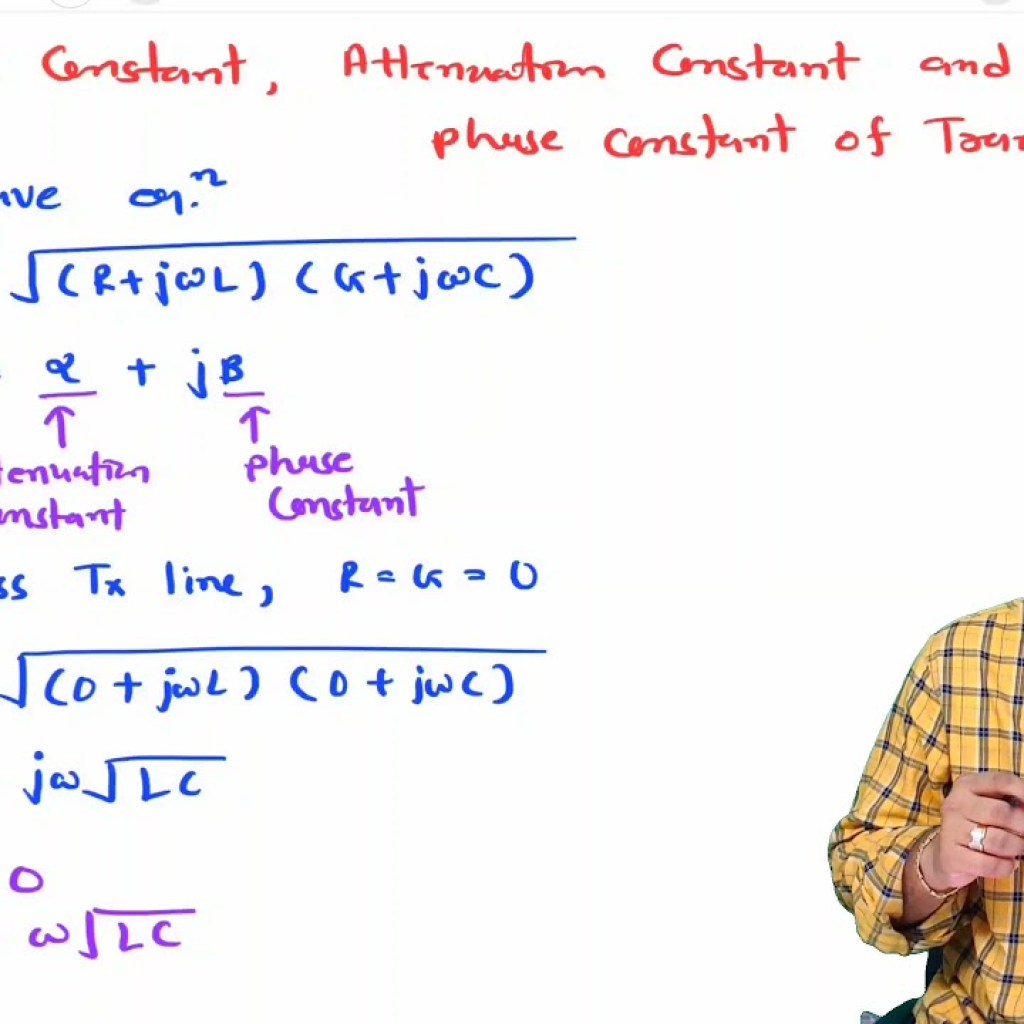

What is a Propagation Constant?
The propagation constant of a mode in a waveguide is a critical factor that influences how the amplitude and phase of light vary along the propagation direction. It is typically represented by the symbol β, and its value is dependent on the optical frequency or wavelength of the light.
Complex Amplitude and Phase
In a waveguide, the complex amplitude of the light field at any position z can be expressed as A(z). The propagation constant β determines how this amplitude changes along the waveguide. In lossless media, β is purely imaginary, which means it only affects the phase of the light, not its amplitude. The real part of β, when present, indicates optical losses or gain within the medium.
Phase Constant and Refractive Index
The imaginary part of the propagation constant, often referred to as the phase constant, is the product of the effective refractive index of the mode and the vacuum wavenumber. This phase constant is essential for understanding how light waves propagate through the waveguide without attenuation.
Optical Losses and Gain
In practical scenarios, waveguides may exhibit optical losses or gain, which introduce a real component to the propagation constant. This real part affects the amplitude of the light, leading to attenuation or amplification as the light travels through the waveguide.
Frequency Dependence and Chromatic Dispersion
The propagation constant’s dependence on optical frequency is a key factor in determining the group delay and chromatic dispersion of the waveguide. Chromatic dispersion occurs when different wavelengths of light travel at different speeds, which can lead to signal distortion in optical communications.
Group Delay
The group delay is the time it takes for a light pulse to travel through the waveguide. It is influenced by the frequency dependence of the propagation constant, particularly its imaginary part. Understanding this relationship is crucial for designing efficient optical communication systems.
Calculating Propagation Constants
To calculate propagation constants, specialized software tools known as mode solvers are typically used. These tools enable precise calculations of the propagation constant based on the waveguide’s physical parameters and the optical frequency of the light.
Importance of Accurate Calculations
Accurate calculation of propagation constants is essential for designing waveguides that meet specific performance criteria. It allows engineers to predict how light will behave in the waveguide, facilitating the development of efficient optical devices and systems.
Conclusion
Propagation constants are vital for understanding and designing waveguides in various optical applications. By comprehending how these constants affect the behavior of light, researchers and engineers can optimize waveguide designs for improved performance and reliability in optical communication systems.
