Understanding Achromatic Optics

Achromatic optics are essential components in various optical systems, designed to minimize chromatic aberrations over a range of wavelengths. This article delves into the principles, applications, and types of achromatic optics, providing a comprehensive understanding of their significance in modern technology.

What Are Achromatic Optics?

Achromatic optics refer to optical devices or setups that are optimized to reduce chromatic aberrations, making them suitable for use across a wide spectrum of wavelengths. These devices are primarily used in lenses and objectives, which are combinations of multiple lenses. The term “achromatism” describes the property of being insensitive to wavelength changes.

Historical Background

The concept of achromatic optics dates back to the eighteenth century, with the invention of doublet and triplet achromatic lenses. These lenses were developed to address the issue of chromatic aberration, which occurs when different wavelengths of light are focused at different points, resulting in blurred images.

Principles of Achromatic Optics

Chromatic aberrations are often analyzed using refractive index values at specific reference wavelengths. Abbe numbers are calculated from these values and used in formulas to determine the strength of chromatic aberrations. By optimizing parameters such as materials, curvature radii, and spacing between optical elements, it is possible to minimize these aberrations.

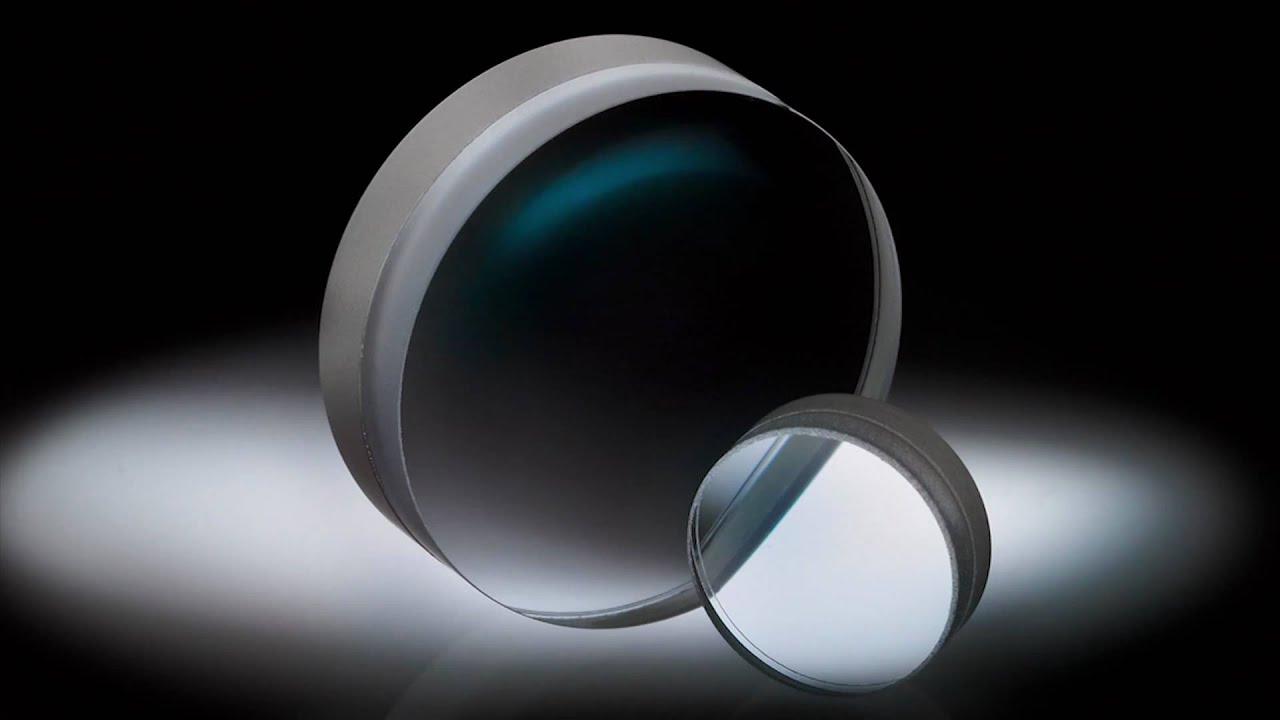

Achromatic Doublet Lens

Achromatic doublet lenses consist of two lenses made from different types of glass, typically crown and flint glass. The combination of a strongly focusing lens with a less strongly defocusing lens allows for compensation of chromatic aberrations. The design of these lenses is numerically optimized to achieve a desired focal length over a specific wavelength range.

Advanced Achromatic Lens Designs

There are various designs of achromatic lenses, including plano-concave and air-spaced doublets. Additionally, apochromatic lenses, or apochromats, use three different materials to achieve chromatic aberration correction at three wavelengths. Superachromatic lenses, involving fluoride glasses, offer high performance but require precise fabrication tolerances.

Applications of Achromatic Optics

Achromatic optics are crucial in imaging systems, including photography, microscopy, and video recording. They are used to ensure clear and sharp images by compensating for chromatic aberrations. In addition to visible light, achromatic optics are also employed in infrared and ultraviolet applications.

Reflective Optics as an Alternative

In some cases, reflective optics, such as curved mirrors, are used to avoid chromatic aberrations altogether. These mirrors are inherently achromatic, making them suitable for applications where wavelength independence is critical.

Other Types of Achromatic Optics

Achromatic Prisms

Achromatic prisms are designed to provide a consistent deflection angle across a range of wavelengths. By combining two prisms made from different materials, the wavelength dependence of the deflection angle can be minimized.

Achromatic Waveplates

Achromatic waveplates reduce the wavelength dependence of optical retardance, ensuring consistent phase changes for two orthogonal polarization directions. These devices are created by combining materials with different chromatic dispersion properties.

Conclusion

Achromatic optics play a vital role in modern technology, providing solutions to chromatic aberrations in various optical systems. Through careful design and material selection, these components ensure high-quality imaging and precise optical performance across diverse applications.
