Understanding Balanced Photodetection

Introduction to Balanced Photodetection

Balanced photodetection, also known as differential photodetection, is a sophisticated technique used to detect small differences in optical power between two input signals. This method is particularly effective in suppressing common fluctuations in the inputs, making it invaluable in various scientific and industrial applications.

How Balanced Photodetection Works

The basic setup of balanced photodetection involves two photodiodes connected in series. When the photocurrents from these diodes are equal, they cancel each other out. The difference in photocurrents is then transmitted to a transimpedance amplifier, which converts it into an output voltage proportional to the difference.

Application in Spectroscopy

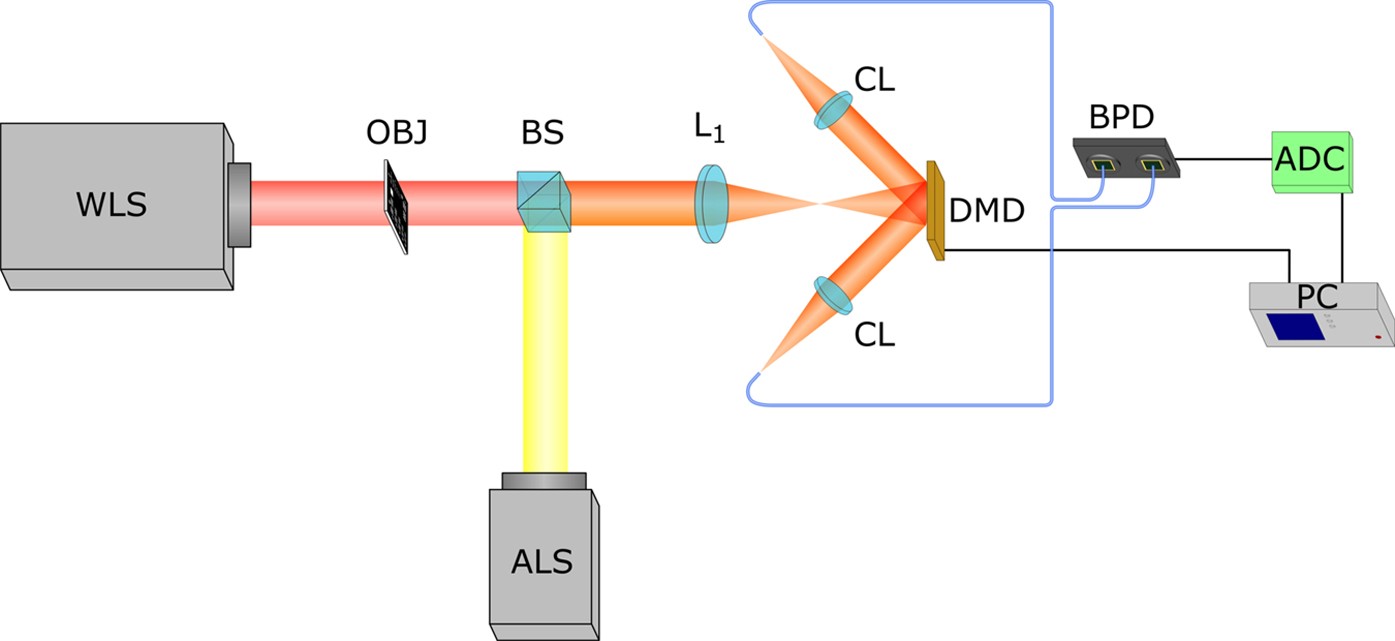

In spectroscopy, balanced photodetection is used to measure weak absorption features. One photodetector receives light that has passed through a sample, while the other detects light from the same source that has not interacted with the sample. This configuration effectively cancels out intensity noise from the light source, resulting in a significantly improved signal-to-noise ratio.

Optimizing Common Mode Rejection

Achieving perfect cancellation requires a precise match between the two detectors and optical paths. Several strategies can optimize this setup:

• Matched Photodiodes: Using photodiodes with similar properties ensures uniform sensitivity and frequency response.
• Adjustable Optical Attenuator: This device can compensate for any differences in responsivity between the detectors.
• Auto-balanced Photodetectors: These devices use electronic circuits to automatically correct asymmetries, enhancing performance further.

Challenges and Solutions

One challenge in balanced photodetection is shot noise, which limits the signal-to-noise ratio. Shot noise is a type of quantum noise that arises even with a perfect 50:50 beam splitter. While a balanced detector minimizes this noise, it cannot eliminate it entirely. Operating photodetectors at higher power levels can help mitigate this issue.

Applications of Balanced Photodetection

Absorption Spectroscopy

In laser absorption spectroscopy, balanced detection suppresses laser noise, allowing for more accurate measurements of absorption features. This method is particularly effective when combined with frequency modulation spectroscopy.

Homodyne Detection

Balanced photodetectors can measure laser intensity noise by using a 50:50 beam splitter. The setup provides both sum and difference signals, allowing for a comprehensive analysis of noise levels, including shot noise.

Interferometric Detection

In interferometry, balanced detection significantly improves noise performance. The technique is commonly used in optical coherence tomography and other applications requiring precise measurement of interferometric signals.

Conclusion

Balanced photodetection is a powerful tool in the field of photonics, offering enhanced signal-to-noise ratios and improved measurement accuracy. By understanding the principles and applications of this technique, researchers and engineers can leverage its benefits in various scientific and industrial contexts.
