Understanding Laser Beam Radius

Introduction to Beam Radius

In the realm of photonics, the concept of beam radius is fundamental when discussing laser beams. A laser beam’s radius is a measure of its spatial extent, which is crucial for applications ranging from telecommunications to medical procedures. The beam radius is often defined as the distance from the beam’s central axis to the point where the intensity drops to a certain percentage of its maximum value. This percentage is typically around 13.5% for Gaussian beams.

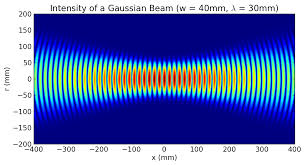

Gaussian Beam Profile

Most laser beams can be approximated by a Gaussian profile, where the intensity distribution follows a specific mathematical form. In this configuration, the electric field strength decreases to approximately 37% of its maximum value at the beam radius. This Gaussian distribution is characterized by its smooth, bell-shaped curve, which makes it particularly useful for various optical applications.

Beam Diameter and FWHM

The beam diameter is generally defined as twice the beam radius. For Gaussian beams, the full width at half maximum (FWHM) is another important parameter, which is about 1.18 times the Gaussian beam radius. The FWHM is the width of the beam at the point where its intensity is half of its peak value, providing a useful measure for comparing different beam profiles.

ISO Standard 11146 and Beam Radius Definition

For non-Gaussian or complex beam profiles, the definition of beam radius can vary. The ISO 11146 standard offers a more robust method by employing the second moment of the intensity distribution. This approach, also known as the D4σ method, calculates the beam radius by considering the intensity distribution’s statistical properties.

Advantages and Challenges

The D4σ method is particularly valuable for predicting the evolution of beam radius in non-diffraction-limited beams. However, it requires precise measurements and is sensitive to external factors such as ambient light and noise. High dynamic range detectors and specialized smoothing techniques are often needed to mitigate these issues.

Effective Beam Area

In certain applications, such as assessing laser-induced damage, the concept of effective beam area is used. This is defined as the optical power divided by the maximum intensity, and it is related to the effective beam radius. For Gaussian beams, the effective beam radius is smaller by a factor of the square root of 2, compared to the standard Gaussian beam radius.

Measuring Beam Radius

Accurate measurement of beam radius is crucial for various applications. Several methods are available, including the knife-edge or slit method for Gaussian beams. For arbitrary beam shapes, camera-based beam profilers are commonly used. These devices can quickly determine the beam radius according to ISO 11146, though they may require optical attenuators to fit within the camera’s dynamic range.

Conclusion

The concept of beam radius plays a critical role in the study and application of laser beams. Understanding the various definitions and measurement techniques is essential for accurate characterization and effective utilization of laser technology in diverse fields.
