Understanding Fiber Cladding in Optical Fibers

Optical fibers are an essential component in modern telecommunications and data transfer systems. They are primarily composed of a fiber core and a surrounding layer known as fiber cladding. This blog post will delve into the intricacies of fiber cladding, its purpose, and its variations in different fiber types.

What is Fiber Cladding?

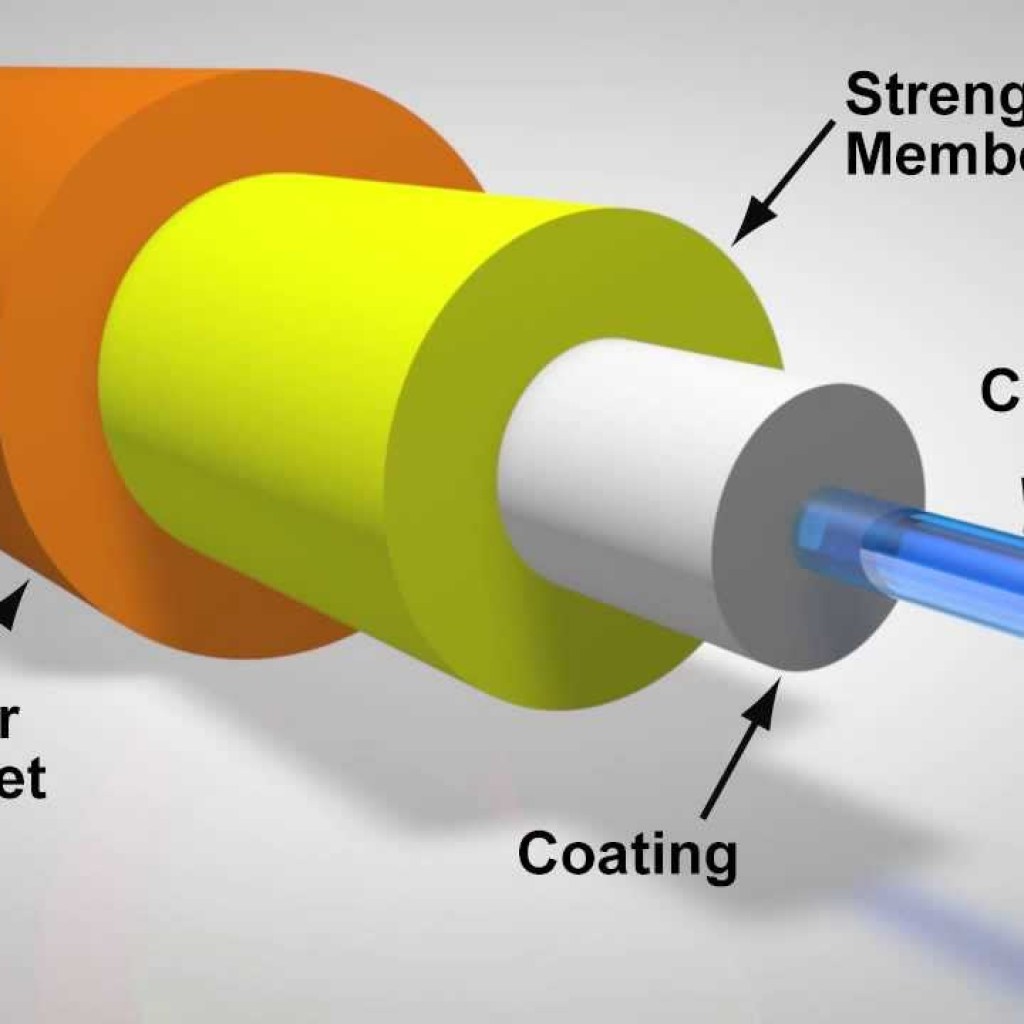

Fiber cladding is the layer that surrounds the core of an optical fiber. It plays a crucial role in guiding light within the core by maintaining the total internal reflection. This is achieved by having a lower refractive index than the core, ensuring that light signals remain confined within the core, thus minimizing signal loss.

Refractive Index Profile

In fibers with complex refractive index profiles, the cladding is considered to be the region where the refractive index becomes constant, extending to the outer cladding radius. Beyond this, there may be air or a polymer coating. The cladding is typically fabricated alongside the core during the fiber drawing process.

Cladding Diameter

The standard cladding diameter for optical fibers is 125 μm. This size strikes a balance between mechanical stability and flexibility, allowing the fiber to bend without breaking. However, in specialized applications such as high-power devices or multi-core fibers, larger cladding diameters may be necessary.

Impact on Fiber Tools

Many fiber tools, including strippers and fusion splicers, are optimized for the 125 μm standard diameter. Non-standard diameters can pose challenges during splicing, but specialized solutions are available for such cases. During the fiber drawing process, the cladding diameter is precisely controlled using feedback systems to ensure consistency.

Numerical Aperture and Cladding

The numerical aperture (NA) of a fiber is typically associated with the core/cladding interface. However, it can also be specified for the cladding, considering the interface between the cladding and any external coating. This parameter is crucial for determining the light acceptance angle and overall fiber performance.

Types of Cladding Materials

Silica Fibers

In silica fibers, the cladding is often made of pure silica, while the core is doped with materials like germania to increase the refractive index. In large-core multimode fibers, an undoped core may be paired with an index-depressed cladding, achieved through doping with elements like fluorine or boron.

Double-Clad Fibers

Double-clad fibers feature an additional pump cladding layer, allowing for the injection of pump light. This design is particularly useful in fiber amplifiers, enhancing their efficiency and performance.

Air Cladding in Photonic Crystal Fibers

Some photonic crystal fibers utilize air cladding, where the fiber cladding is surrounded by a barrier composed mostly of air. This unique structure offers distinct advantages in certain optical applications.

Light Propagation in Core and Cladding

While the core primarily guides light, some optical power may extend into the cladding. This fraction is usually minimal but can increase near the mode cut-off. Cladding modes, which propagate in the cladding area, are generally undesirable as they can lead to signal loss.

Efforts are made to launch light exclusively into guided modes, but imperfections during launching or excessive bending can introduce cladding modes. Understanding and managing these factors is crucial for optimizing fiber performance.

Conclusion

Fiber cladding is an integral component of optical fibers, influencing their guiding properties and overall functionality. Its design and composition vary across different fiber types, each tailored to specific applications. A comprehensive understanding of fiber cladding is essential for anyone involved in the field of photonics and optical communications.
