Understanding Microchannel Plates in Photonics

Introduction

Microchannel plates (MCPs) are crucial components in photonics, serving as fast high-gain electron amplifiers with applications in various imaging devices. They are sensitive not only to electrons but also to ions, particles, and high-energy electromagnetic radiation.

Construction and Operation

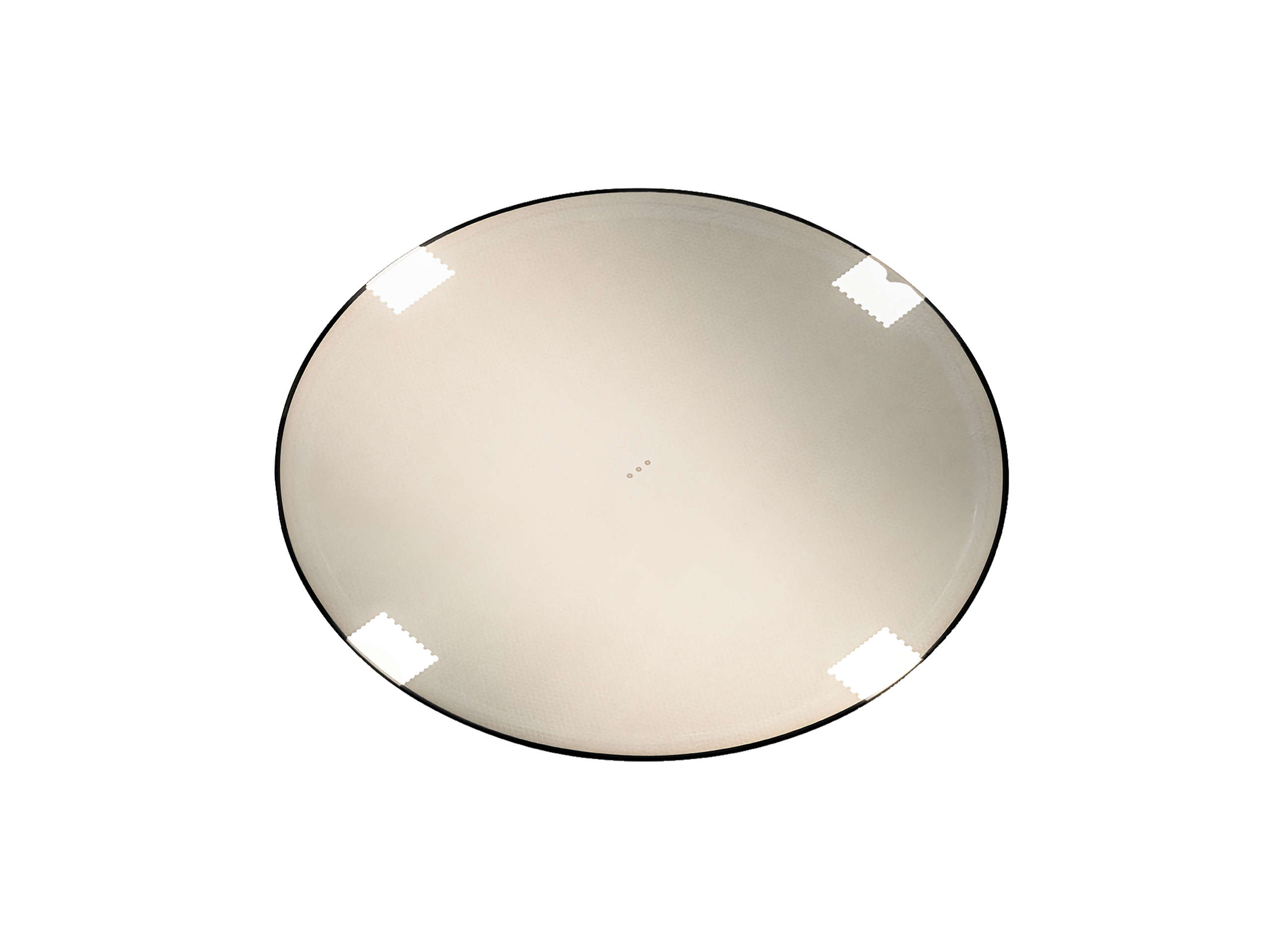

MCPs consist of a plate with an array of tiny holes, typically made of glass. These holes act as channels for electron amplification. By applying a high voltage in a vacuum environment, MCPs can generate thousands of output electrons from a single incident electron.

Key Properties

• Gain: MCPs offer high amplification factors, with gains ranging from thousands to over a million. However, excessive gain can introduce noise.
• Strip Current: MCPs exhibit a strip current due to the material’s conductivity, affecting power consumption and device heating.
• Dark Current: The dark current, output current without input signal, is minimal in MCPs.
• Saturation: MCPs reach saturation at high output currents, limiting the linear response range.
• Spatial Resolution: Channel pitch determines spatial resolution, with smaller pitches offering higher resolution.
• Bandwidth and Dead Time: MCPs have high detection bandwidth and short dead times between electron avalanches.
• Lifetime and Sensitivity: MCPs degrade over time, affected by factors like operation voltage, vacuum quality, and mechanical shock sensitivity.

Applications

MCPs are used in:

• Image Intensifiers: Enhance image brightness for direct viewing or electronic sensors.
• Microchannel Photomultipliers: Compact detectors with moderate operation voltages, suitable for various photonics applications.
• Fast Shutters: MCPs can act as fast gates for ultrafast imaging applications.

Combination of Multiple MCPs

By combining multiple MCPs in series, such as dual-stage or three-stage MCPs, higher gains can be achieved with reduced noise, making them ideal for applications requiring extremely sensitive detection.

Conclusion

Microchannel plates play a vital role in photonics, offering high amplification, sensitivity, and spatial resolution for a wide range of imaging and detection applications. Their unique properties make them indispensable in modern photonics technology.
