Understanding Heterodyne Detection in Photonics

Heterodyne detection, often termed coherent detection, is a sophisticated method utilized in the fields of radio waves, microwaves, and optics. It involves the mixing of a weak input signal with a stronger local oscillator wave, resulting in a frequency mixing product that is subsequently detected. This technique has been adapted for various applications, particularly in optical communications and sensing technologies.

The Principle of Heterodyne Detection

Basic Mechanism

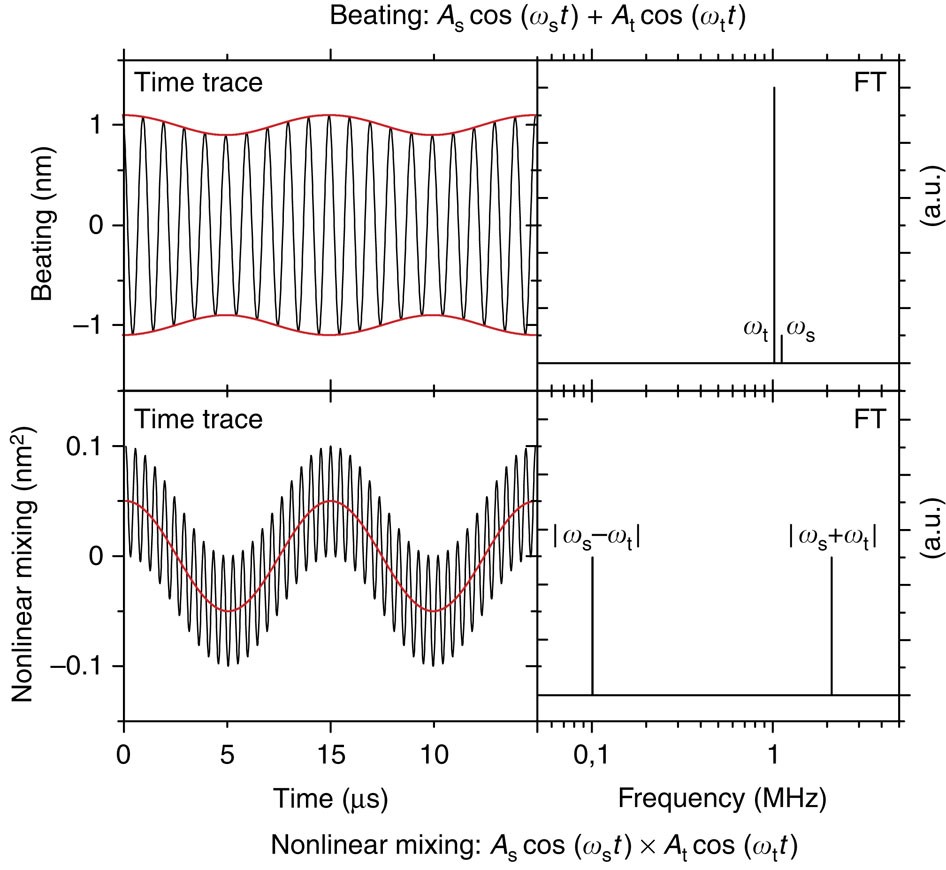

In heterodyne detection, a weak signal is combined with a strong local oscillator wave within a nonlinear device, such as a rectifier. This combination produces a mixing product whose frequency is either the sum or difference of the original signal and local oscillator frequencies. In optical applications, this process is achieved using a square-law photodetector, like a photodiode, to detect linearly superimposed waves.

Optical Heterodyne Detection

Optical heterodyne detection involves the use of optical signals and local oscillator waves to produce an electrical signal. Typically, a beam combiner or splitter is used to align the beams, ensuring they are mode-matched. This means their intensity profiles and wavefront curvatures must overlap perfectly on the detector. Fiber-optic setups often employ single-mode fibers to maintain this alignment.

Advantages and Noise Considerations

Signal Gain and Sensitivity

Heterodyne detection can significantly amplify weak input signals without optical amplification, providing enhanced sensitivity. This makes it ideal for detecting very weak signals, such as those found in atmospheric LIDAR applications. The technique is particularly advantageous when compared to direct detection, which requires higher signal powers to reach the shot noise limit.

Sources of Noise

Various noise sources can affect the detected signal, including shot noise, noise from the photodetector, and additional electronic noise. By increasing the local oscillator power, the shot noise can surpass other noise sources, fundamentally limiting the signal-to-noise ratio. The system’s sensitivity is optimized by ensuring high beam overlap and transmission efficiency in the beam combiner.

Advanced Techniques and Applications

Balanced Detection

Balanced detection is a refined technique that mitigates excess noise from the local oscillator. By using a beam splitter with 50% reflectivity and obtaining the difference between two photocurrents, noise influences can be minimized, enhancing the detection precision.

Applications in Modern Technologies

Heterodyne detection is widely used in various applications, including coherent Doppler LIDAR for measuring wind speeds, laser spectroscopy, and optical fiber communications. It allows for precise phase-sensitive measurements, crucial for demodulating phase-encoded signals and electronic dispersion compensation.

Conclusion

Heterodyne detection remains a vital tool in the field of photonics, offering unparalleled sensitivity and precision in detecting and processing optical signals. Its ability to amplify weak signals without optical amplification and its application across various technologies underscore its significance in advancing optical communication and sensing capabilities.
